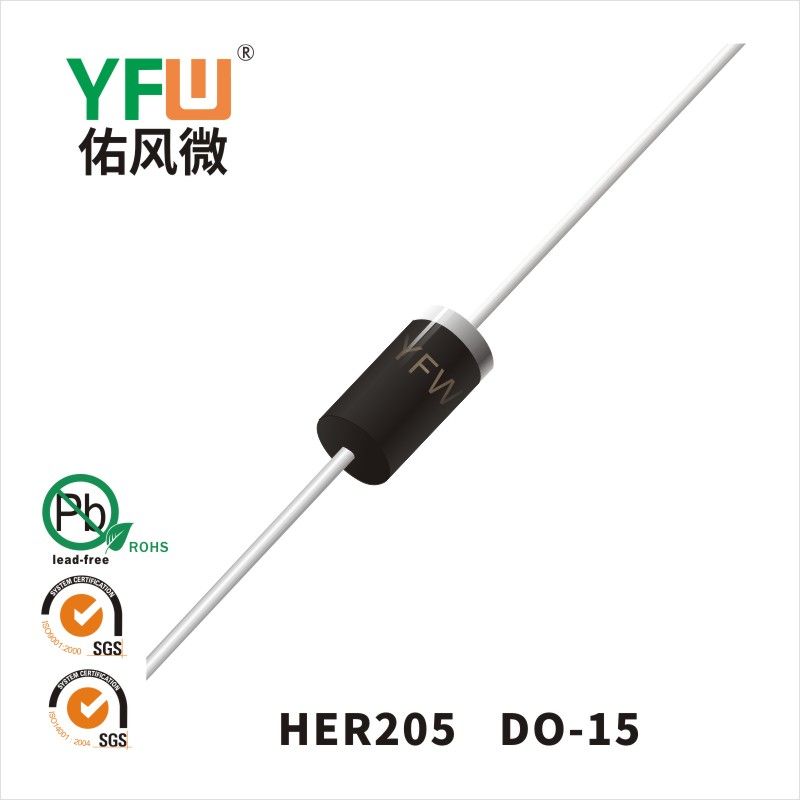

Diodes haute efficacité HER205 Specifications_ Price_ PDF manual-Guangdong Youfeng Micro Original Factory HER205 DO-15_(YFW Youfeng Micro) brand
| 2.0 Ampere / DO-15 | ||||||||
| TYPE | I(AV) | VRRM | IFSM | VFM | I RM @ VRRM | trr | Pafckage Outline | |
| @IRM | VFM | I(AV) | TA=25℃ | |||||
| A | V | A | V | A | μA | nS | ||
| HER203 | 2.0 | 200 | 60 | 0.95 | 2.0 | 10.0 | 50 | DO-15 |
| HER205 | 2.0 | 400 | 60 | 1.25 | 2.0 | 10.0 | 50 | DO-15 |
| HER208 | 2.0 | 1000 | 60 | 1.65 | 2.0 | 10.0 | 75 | DO-15 |
| 2.5 Ampere / DO-15 | ||||||||
| TYPE | I(AV) | VRRM | IFSM | VFM | I RM @ VRRM | trr | Pafckage Outline | |
| @IRM | VFM | I(AV) | TA=25℃ | |||||
| A | V | A | V | A | μA | nS | ||
| HER253 | 2.5 | 200 | 100 | 0.95 | 2.5 | 10.0 | 50 | DO-15 |
| HER255 | 2.5 | 400 | 100 | 1.25 | 2.5 | 10.0 | 50 | DO-15 |
| HER258 | 2.5 | 1000 | 100 | 1.65 | 2.5 | 10.0 | 75 | DO-15 |
| 3.0 Ampere / DO-27(DO-201AD) | ||||||||
| TYPE | I(AV) | VRRM | IFSM | VFM | I RM @ VRRM | trr | Pafckage Outline | |
| @IRM | VFM | I(AV) | TA=25℃ | |||||
| A | V | A | V | A | μA | nS | ||
| HER303 | 3.0 | 200 | 150 | 0.95 | 3.0 | 10.0 | 50 | DO-27 |
| HER305 | 3.0 | 400 | 150 | 1.25 | 3.0 | 10.0 | 50 | DO-27 |
| HER308 | 3.0 | 1000 | 150 | 1.65 | 3.0 | 10.0 | 75 | DO-27 |
| 3.0 Ampere / DO-27(DO-201AD) | ||||||||
| TYPE | I(AV) | VRRM | IFSM | VFM | I RM @ VRRM | trr | Pafckage Outline | |
| @IRM | VFM | I(AV) | TA=25℃ | |||||
| A | V | A | V | A | μA | nS | ||
| HER303G | 3.0 | 200 | 150 | 0.95 | 3.0 | 10.0 | 50 | DO-27 |
| HER305G | 3.0 | 400 | 150 | 1.25 | 3.0 | 10.0 | 50 | DO-27 |
| HER308G | 3.0 | 1000 | 150 | 1.65 | 3.0 | 10.0 | 75 | DO-27 |
| 3.0 Ampere / DO-27(DO-201AD) | ||||||||
| TYPE | I(AV) | VRRM | IFSM | VFM | I RM @ VRRM | trr | Pafckage Outline | |
| @IRM | VFM | I(AV) | TA=25℃ | |||||
| A | V | A | V | A | μA | nS | ||
| UF5402 | 3.0 | 200 | 150 | 0.95 | 3.0 | 10.0 | 50 | DO-27 |
| UF5404 | 3.0 | 400 | 150 | 1.25 | 3.0 | 10.0 | 50 | DO-27 |
| UF5408 | 3.0 | 1000 | 150 | 1.65 | 3.0 | 10.0 | 75 | DO-27 |
| 5.0 Ampere / DO-27(DO-201AD) | ||||||||
| TYPE | I(AV) | VRRM | IFSM | VFM | I RM @ VRRM | trr | Pafckage Outline | |
| @IRM | VFM | I(AV) | TA=25℃ | |||||
| A | V | A | V | A | μA | nS | ||
| HER503 | 5.0 | 200 | 200 | 0.95 | 5.0 | 10.0 | 50 | DO-27 |
| HER505 | 5.0 | 400 | 200 | 1.25 | 5.0 | 10.0 | 50 | DO-27 |
| HER508 | 5.0 | 1000 | 200 | 1.65 | 5.0 | 10.0 | 75 | DO-27 |
